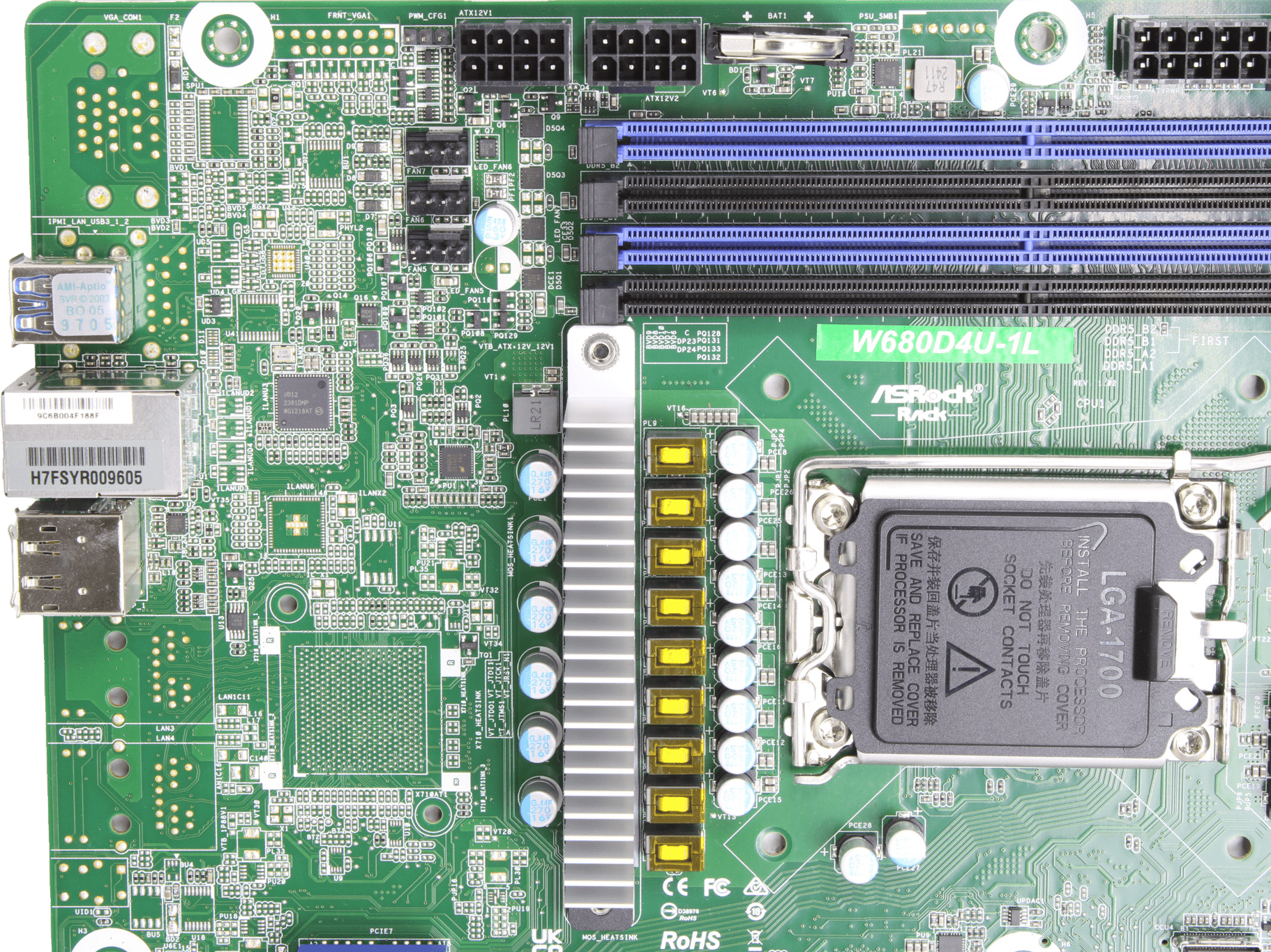

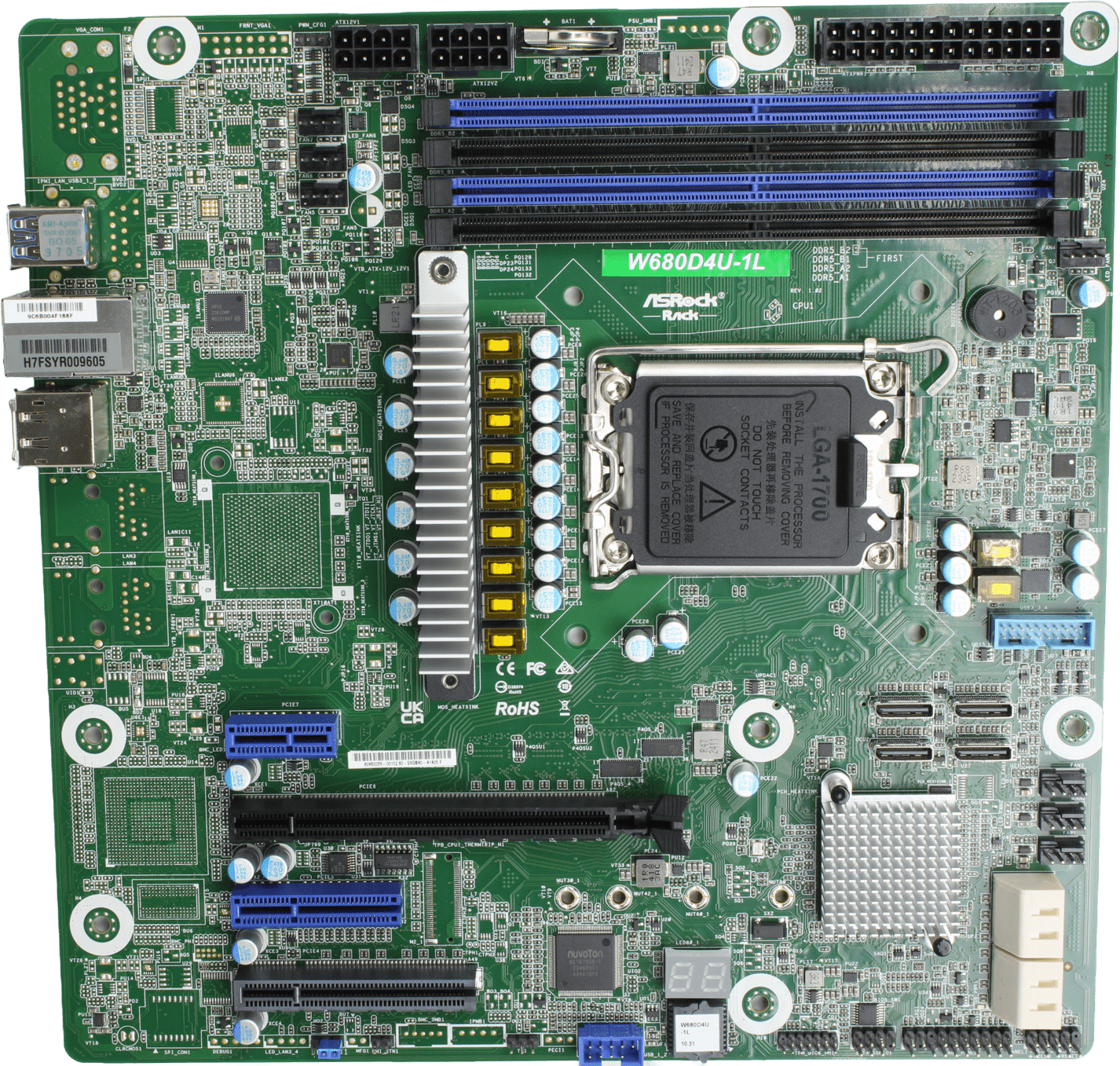

ASRock Rack W680D4U-1L Server Mainboard - Micro-ATX - Intel LGA-1700 + IO Shield
Produktnummer: 10080
Beschreibung
ASRock Rack W680D4U-1L Server Mainboard - Micro-ATX - Intel LGA-1700 + IO Shield
Spezifikationen
Allgemeine Informationen
| Hersteller | ASRock |
|---|---|
| Kategorie | Mainboard |
| Modell | W680D4U-1L |
| Formfaktor | Micro-ATX (244mm x 244mm) |
| Rev.Nr | 1.02 |
Prozessor
| Prozessor-Sockel | LGA-1700 Unterstüzt Intel Core: 14th Gen, 13th & 12th Gen |
|---|---|
| Thermal Design Power | 150W |
| Chipsatz | Intel W680 |
Arbeitsspeicher
| RAM Typ | DDR5 |
|---|---|
| DIMM Slots | 4 DIMM Slots (2DPC) |
| Unterstützte DIMM Typen | DDR5 288-pin ECC/non-ECC UDIMM |
| Maximale Kapazität | 48GB 14th Gen & 13th 32GB 12th Gen |
| Max. DIMM Frequenz | 4400Mt/s (2DPC-1DIMM) / 4000MT/s (2DPC-2DIMM 1R) / 3600MT/s (2DPC-2DIMM 2R) |
PCIe Erweiterungssteckplätze (Slot7 nähe CPU)
| PCIe x 16 | SLOT6: PCIe4.0 x16* (CPU) * SLOT6 auto-switch to PCIe4.0 x8 when SLOT4 occupied |
|---|---|
| PCIe x 8 | SLOT4: PCIe4.0 x8* (CPU) |
| PCIe x 1 | SLOT7: PCIe3.0 x1 (PCH) |
Weitre PCIe Erweiterungen
| M.2 Steckplatz | 1x M-Key (PCIe3.0x4), Unterstützt 2280/2260/2242/2230 Formfaktor |
|---|---|
| OCuLink | 1 OCuLink (PCIe4.0 x4) [CPU] 1 OCuLink (PCIe4.0 x4 oder 4 SATA 6Gb/s) [PCH] 2 OCuLink (PCIe4.0 x4) [PCH] |
SATA/SAS Storage
| PCH Build-in Storage | Intel W680 (up to 8 SATA 6Gb/s; RAID 0/1/5/10): 4 SATA 7-pin, OCuLink for 4 SATA |
|---|
Server Management
| BMC Controller | ASPEED AST2600: iKVM, vMedia support |
|---|---|
| IPMI Dedicated GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
Internal Connectors/Headers
| Power Connector | 1 (24-pin, ATX main Power), 2 (8-pin, ATX 12V) |
|---|---|
| Auxiliary Panel Header | 1 (18-pin): Chassis Intrusion, System fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): Power switch, Reset switch, System power LED, HDD activity LED |
| Fan Header | 7 (4-pin) |
| TPM Header | 1 (13-pin, SPI) |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen 1) |
| USB 2.0 Header | 1 (9-pin, 2 USB2.0) |
LED Indicators
| Standby PWR LED | 1 |
|---|---|
| 80 Debug Port LED | 1 |
| Fan Fail LED | 7 |
| BMC heartbeat LED | 1 |
System BIOS
| BIOS Type | AMI 256Mb SPI Flash ROM |
|---|---|
| BIOS Features | Plug and Play (PnP), ACPI 6.4 and above compliance wake up events, SMBIOS 3.6.0 and above, ASRock Rack instant flash |
Hardware Monitor
| Temperature | CPU, MB, Card side, VR, M.2, TR1 Temperature sensing |
|---|---|
| Fan | Fan Tachometer CPU Quiet Fan ( Allow Chassis Fan Speed Auto-Adjust by CPU Temerature) Fan Multi-Speed Control |
| Voltage | 3VSB, 5VSB, CPU_VCORE, VCCIN_AUX, VDD2, 1.05V_PCH, 0V82SB_PCH, VCCGT, 1V8SB, VCCSA, BAT, 3V, 5V, 12V |
IO Ports
| Display | 1x HDMI & 1x DP Port |
|---|---|
| USB | 2x USB-A 3.2 Gen1 |
| Ethernet | 2x RJ45(1GbE) |
Lieferumfang
| Packetinhalt | 1x ASRock Rack W680D4U-1L Server Mainboard 1x IO Shield - Ohne weiteres Zubehör |
|---|
Eigenschaften
Herstellernummer (MPN): | 80H50055-00102 80-SXGBH0-A1A05 F |
|---|---|
Produkt-Typ | Server Mainboards |
