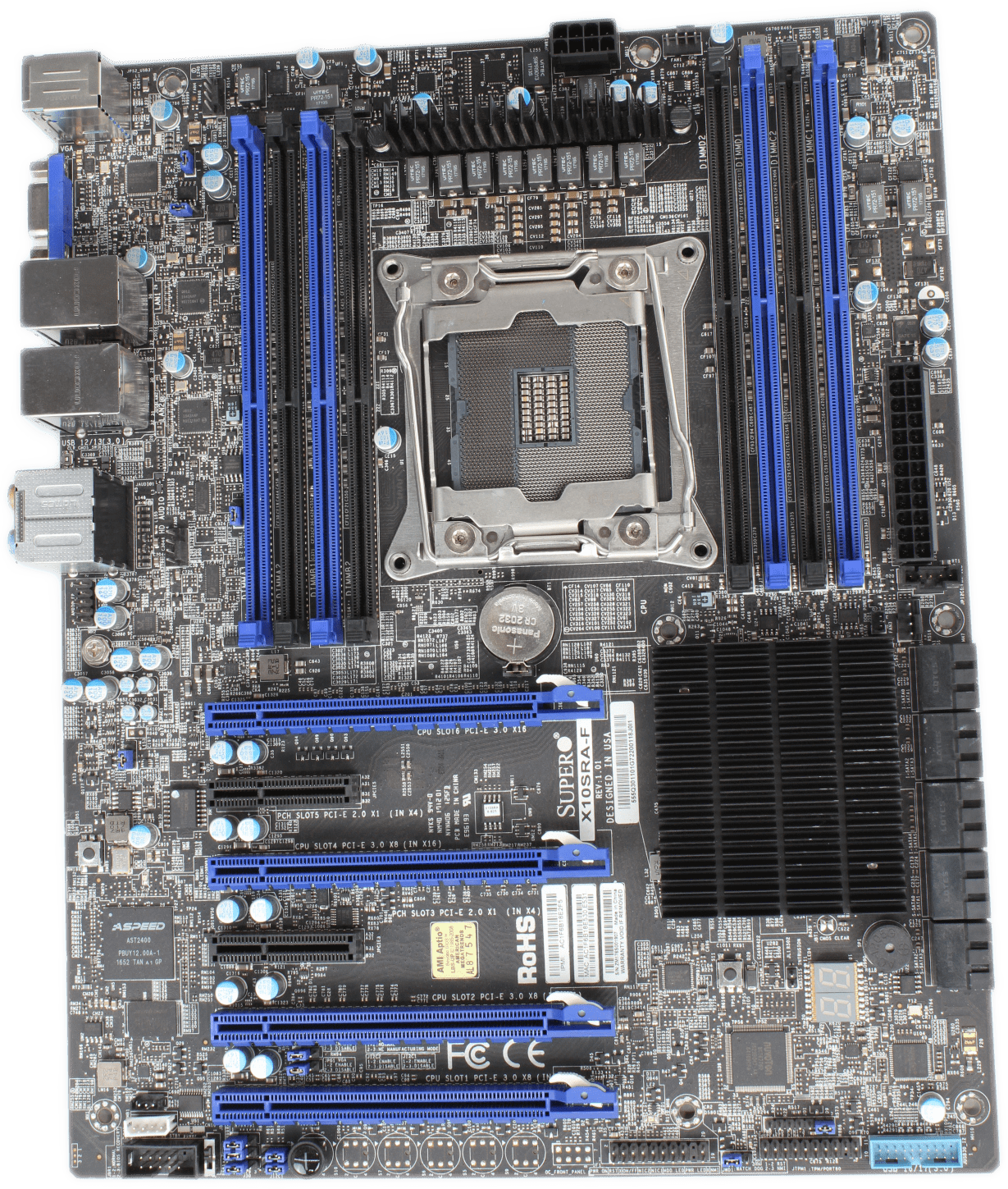

Supermicro X10SRA-F | Intel C612 | ATX Mainboard | LGA 2011-3

Supermicro X10SRA-F | Intel C612 | ATX Mainboard | LGA 2011-3

Supermicro X10SRA-F | Intel C612 | ATX Mainboard | LGA 2011-3

Supermicro X10SRA-F | Intel C612 | ATX Mainboard | LGA 2011-3

Supermicro X10SRA-F | Intel C612 | ATX Mainboard | LGA 2011-3

Supermicro X10SRA-F | Intel C612 | ATX Mainboard | LGA 2011-3

Supermicro X10SRA-F | Intel C612 | ATX Mainboard | LGA 2011-3

Artikelnummer: 230
Kategorie: Server Mainboards
Hersteller: Supermicro

289,99 €

inkl. 19% USt. ,

7 Auf Lager
Lieferzeit: 1 - 3 Werktage (DE - Ausland abweichend)

Beschreibung
Bewertungen

Supermicro X10SRA-F | Intel C612 | ATX Mainboard | LGA 2011-3

Spezifikationen

Allgemeine Informationen

Hersteller	Supermicro
Kategorie	Mainboard ATX
Modell	X10SRA-F
P/N	MBD-X10SRA-F

Prozessor

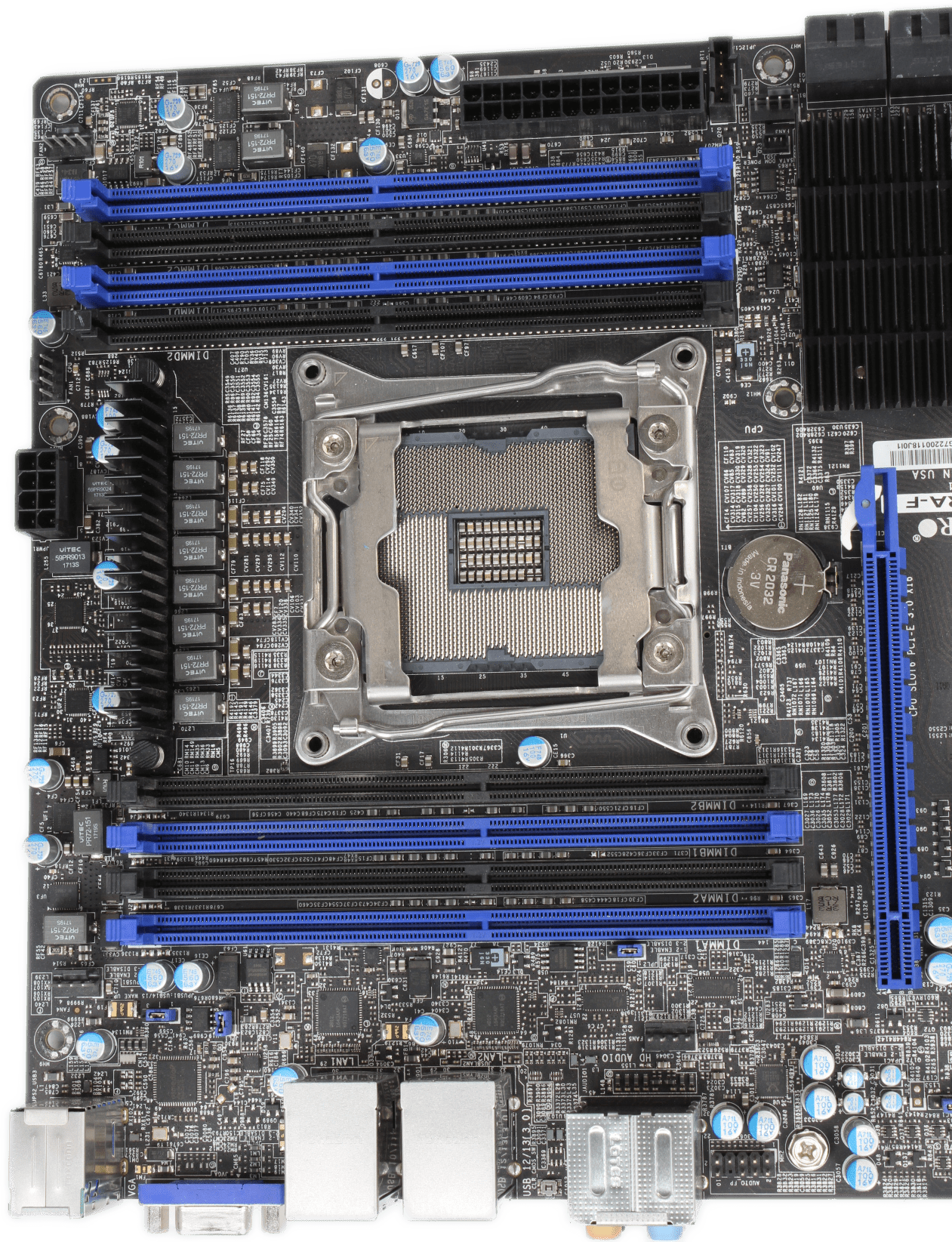

Prozessor-Sockel

Single socket R3 (LGA 2011)

Kompabilität

Intel® Core i7 Processor (Socket R3), Intel® Core i7 Processor Extreme Edition (Socket R3), Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4
Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP supports Up to 160W TDP

Up to 22 Cores / Up to 55MB cache

Arbeitsspeicher

Ram Type	2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
Max. RAM	Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 1TB 3DS ECC LRDIMM, DDR4-2400MHz, in 8 DIMM slots8 288-pin DDR4 DIMM slots; Up to 512GB ECC LRDIMM ; Up to 128GB DDR4 ECC/non-ECC UDIMM (available with Core i7 only)
DIMM Sizes	Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 1TB 3DS ECC LRDIMM, DDR4-2400MHz, in 8 DIMM slots8 288-pin DDR4 DIMM slots; Up to 512GB ECC LRDIMM ; Up to 128GB DDR4 ECC/non-ECC UDIMM (available with Core i7 only)

Erweiterungssteckplätze

PCIe Steckplätze

4x PCIe3.0 x16 (slots are running at 16/16/NA/8 or 16/8/8/8)

2x PCIe2.0 x1 (in x4 Slot)

*PCI-E Slot#1 (x4) and Slot#4 (x16) are disabled when an Intel Core i7-5820K is installed

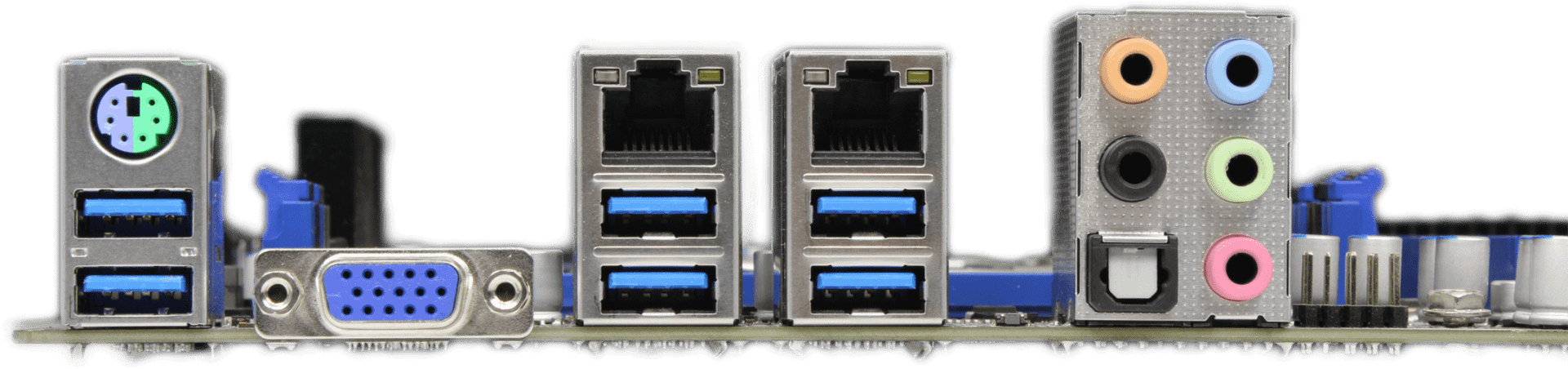

Input / Output

SATA	10 SATAIII (6Gbps) Ports
USB	8x USB 3.2 Gen 1 port (6rear + 2 via headers))
Video Output	1x VGA
Serial Port / Header	21 COM Ports (2 header)
TPM	1x TPM Header
LAN	2x RJ45 Gigabit Ethernet LAN Ports

On-Board Devices

Chipset	Intel C612
SATA	Intel® C612 controller for 6 SATAIII (6 Gbps) ports; RAID 0,1,5,10
IPMI	OOB Bios refresh function is not supported
Network Controllers	Intel® i210 Gigabit Ethernet ControllerShare with IPMISupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	ALC 1150 HD Audio

Lieferumfang

Paketinhalt	1 x Supermicro X10SRA-F \| Intel C612 \| ATX Mainboard \| LGA 2011-3

Versandgewicht:	1,30 kg
Artikelgewicht:	0,90 kg

Es gibt noch keine Bewertungen.
