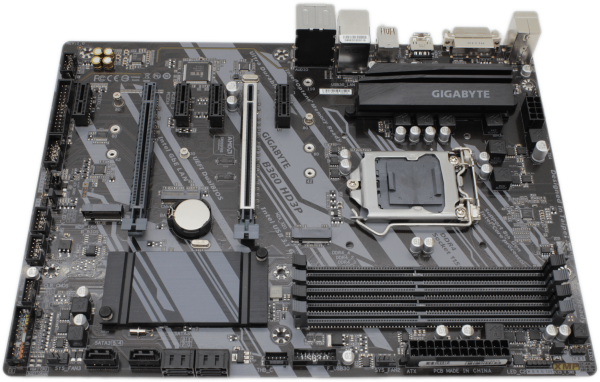

Name: Gigabyte | B360 HD3P Rev 1.0 Mainboard | Intel LGA1151 Sockel inkl. IO Shield
Brand: Gigabyte
SKU: 9369
Availability: InStock

Gigabyte B360 HD3P Rev 1.0 Mainboard, Refurbished

Gigabyte | B360 HD3P Rev 1.0 Mainboard | Intel LGA1151 Sockel inkl. IO Shield

59,99 €

Sofort verfügbar, Lieferzeit: 1-3 Tage

59,99 €

Gigabyte | B360 HD3P Rev 1.0 Mainboard | Intel LGA1151 Sockel inkl. IO Shield

Produktnummer: 9369

Lagerbestand: 5

Beschreibung

Gigabyte B360 HD3P Rev 1.0 Mainboard | Intel LGA1151 Sockel inkl. IO Shield

Das Bios des Mainboards ist die Version F16.

Prozessor-Sockel	LGA 1151 (8. und 9. Generation Intel Core)

RAM Typ	DDR4
Max. RAM	64 GB (4 Steckplätze)

PCIe Steckplätze	2x PCIe x16, 4x PCIe x1

M.2 Steckplatz	2x M.2 PCIe x4 / SATA
SATA-Anschlüsse	6x SATA 6Gb/s

LAN	Intel GbE LAN chip (10/100/1000 Mbit)
Audio	Realtek ALC892

USB	1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Rückseite I/O Anschlüsse	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 1 x USB 3.1 Gen 2 Type-A port (red) 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 2 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks
Innterne I/O Anschlüsse	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB (RGBW) LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x parallel port header 1 x serial port header 1 x Clear CMOS jumper

Paketinhalt	1 x Gigabyte B360 HD3P Mainboard + IO Shield

Herstellernummer (MPN):	B360 HD3P Rev 1.0
Produkt-Typ	Mainboard
Modell	B360 HD3P Rev 1.0
BIOS Version	F16
Sockel	Intel LGA1151
CPU Kompatibilität	8. und 9. Generation Intel Core
Arbeitsspeicher Steckplätze	4
Maximalgröße Arbeitsspeicher gesamt	64 GB
Speicheroptionen	2x M.2 PCIe x4, 6x SATA III
Erweiterungssteckplätze PCIe	2x PCIe x16, 4x PCIe x1
Lan-Schnittstelle	RJ45 - 1 Gbit Lan
Wireless / Wifi / WLAN	Nicht vorhanden
Bluetooth	Nicht vorhanden
Audio	Realtek ALC892
Video Ein- & Ausgänge	DVI-D, HDMI
USB-C Ports	USB-C 3.1 Gen 2
Weitere Anschlüsse	2x USB-A 2.0, 2x USB-A 3.1 Gen 1, Audioanschluss, PS/2
Interne I/O Anschlüsse	1x 8-pin ATX 12V power connector, 1x 24-pin ATX main power connector, 1x CPU fan header, 1x Clear CMOS jumper, 1x S/PDIF Out header, 1x Thunderbolt add-in card connector, 1x Trusted Platform Module (TPM) header (2x6-pin for the GC-TPM2.0_S module only), 1x USB 3.1 Gen1 header, 1x front panel audio header, 1x front panel header, 1x parallel port header, 1x serial port header, 2x M.2 Socket 3 connectors, 2x RGB (RGBW) LED strip headers, 2x USB 2.0/1.1 headers, 2x digital LED strip headers, 2x digital LED strip power select jumpers, 3x system fan headers, 6x SATA 6Gb/s connectors
Mainboard Formfaktor	ATX
Lieferumfang	Inklusive I/O Shield
Zustand	Hervorragend, Refurbished
