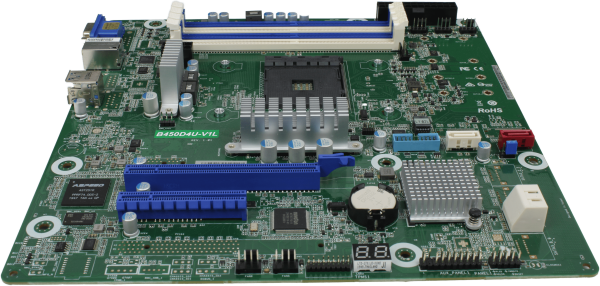

ASRock Rack B450D4U-V1L Micro ATX Mainboard - Sockel AM4 4x DDR4 RAM +I/O Shield
69,99 €
Sofort verfügbar, Lieferzeit: 1-3 Tage
69,99 €
ASRock Rack B450D4U-V1L Micro ATX Mainboard - Sockel AM4 4x DDR4 RAM +I/O Shield
Produktnummer: 10139
Lagerbestand: 613
Beschreibung
ASRock Rack B450D4U-V1L Micro ATX Mainboard - Sockel AM4 4x DDR4 RAM +I/O Shield
Spezifikationen
Allgemeine Informationen
| Hersteller | ASRock |
|---|---|
| Kategorie | Mainboard |
| Modell | B450D4U-V1L |
| Formfaktor | Micro-ATX (244mm x 244mm) |
| Rev.Nr | 1.01 |
Prozessor
| Prozessor-Sockel | AMD AM4 Unterstüzt AMD Ryzen: 2000 Series Desktop Prozessoren, 2000 G-Series Desktop mit Radeon Grafik und AMD Ryzen Gen 3 |
|---|---|
| Chipsatz | AMD B450 |
Arbeitsspeicher
| RAM Typ | DDR4 |
|---|---|
| DIMM Slots | 4 DIMM Slots (2DPC) |
| Unterstützte DIMM Typen | DDR4 288-pin ECC/non-ECC UDIMM |
| Maximale Kapazität | Bis zu 64GB pro DIMM |
| Max. DIMM Frequenz | Bis zu 3200 MT/s |
PCIe Erweiterungssteckplätze
| PCIe x 16 | PCIe3.0 x16 |
|---|---|
| PCIe x 8 | PCIe x8 (PCIe3.0 x4) |
SATA/SAS Storage
| PCH Build-in Storage | AMD B450 (4 SATA 6Gb/s) |
|---|
Internal Connectors/Headers
| Power Connector | 1 (24-pin, ATX main Power), 1 (8-pin, ATX 12V) |
|---|---|
| Auxiliary Panel Header | 1 (18-pin): Chassis Intrusion, System fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): Power switch, Reset switch, System power LED, HDD activity LED |
| Fan Header | 6 (4-pin) |
| TPM Header | 1 (17-pin, LPC) |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen 1) |
LED Indicators
| Standby PWR LED | 1 |
|---|---|
| 80 Debug Port LED | 1 |
| Fan Fail LED | 6 |
| BMC heartbeat LED | 1 |
System BIOS
| BIOS Type | 128Mb AMI UEFI Legal BIOS |
|---|---|
| BIOS Features | Plug and Play (PnP) ACPI 2.0 Compliance Wake Up Events SMBIOS 2.8.0 Support ASRock Rack Instant Flash |
Hardware Monitor
| Temperature | CPU/DDR temperature sensing MB/Card side temperature sensing |
|---|---|
| Fan | Fan Tachometer Quiet Fan ( Allow Chassis Fan Speed Auto-Adjust by CPU Temerature) Fan Multi-Speed Control |
| Voltage | Voltage Monitoring: CPU, DDR4, 3v/5v/12v/+1.05V_PCH, +BAT, 3VSB, 5VSB |
IO Ports
| Display | 1x DB15 |
|---|---|
| USB | 2x USB-A 3.2 Gen1 |
| Ethernet | 1x RJ45(1GbE) |
Lieferumfang
| Paketinhalt | 1x ASRock Rack B450D4U-V1L 1x IO Shield - Ohne weiteres Zubehör |
|---|
Eigenschaften
Herstellernummer (MPN): | 0CCR009-00592 |
|---|---|
Produkt-Typ | Server Mainboards |
Hersteller
ASRock
